Anti Smog Gun

Cloud Tech is a leading manufacturer of an anti-smog-gun gun in India. Our Anti Smog Gun is designed to curb the problem of air pollution. It works by spraying atomized water into the atmosphere, creating an artificial mist that leads to clearing all the dust and polluted particles from the environment. It is possible because small droplets of water coming from anti-smog-gun gun stick to air-borne pollutants and bring them down to the ground. Thus, our anti smog gun is a solution to overcome the issue of air pollution. The equipment basically acts like rain to bring down suspended particles.

At Cloud Tech, we utilize advanced technology in the manufacturing process of the device to create an ultra-fine fog consisting of very fine water droplets( 10 Micron size). The device is equipped with a high-speed fan that helps in spreading the tiny water drops coming from the gun in the larger area and absorbing even the smallest dust particles in the air.

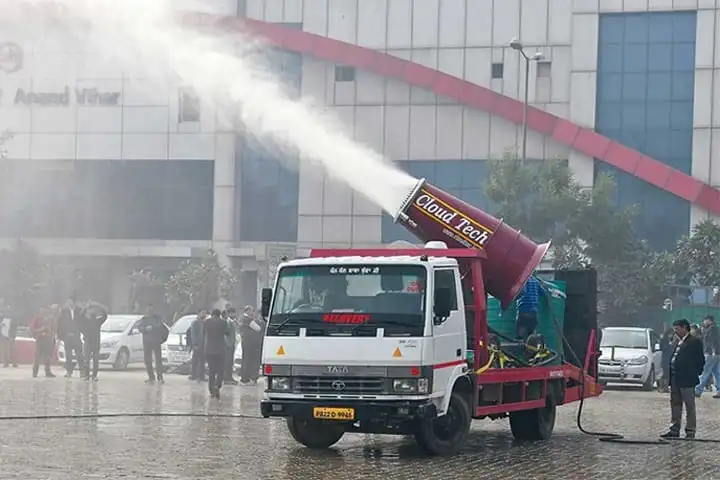

Anti Smog Gun gives a portable air pollution control solution. The device is connected to a water tank and mounted on a movable vehicle, either a wheeler, trolley, or truck. So, it can be easily taken anywhere you need to spread droplets. Further, our equipment comes with the capacity of spraying water up to a height of 50 meters to settle dust particles and PM 2.5.


Anti Smog Gun
Features of Our anti-smog-gun Gun:

Our anti-smog-gun gun is epoxy or galvanized coated base, pole-mounted, maintenance-free, aesthetic look. It has a high-pressure booster pump and nozzles to produce circa 10-micron droplet size. The device also features 70-100 bars operating pressure, 0 to 340 deg rotation, and 0 to 60 deg elevation. What else? The anti-smog-gun gun comes equipped with automatic adjustable rotation, banded switch gears, and motors.

The anti-smog-gun gun manufactured by Cloud Tech is required when the environment grapples with hazardous levels of pollution and the air quality continuously dipping to a severe category. The device works well even when the smog is a result of local emission of pollutants, emission transport from other regions, and meteorological factors such as temperature and wind speed.

Anti Smog Gun Models

Models CTFC30 CTFC50 CTFC70 CTFC100 CTFC120 CTFC150
POWER (KW) 9 KW 13 KW 30 KW 50 KW 58 KW 75 KW
MINIMUM FLOW (m3/hr) 1.5-2.4 3.0- 6.0 4.8- 10 8.0- 15 12- 20 15- 24
THROW (mtrs) 35-40 55-60 75-80 95-100 115-120 145-150
OSCILLATION (deg) 0-320 0-320 0-320 0-320 0-320 0-320
THROW ANGLE (deg) -5 to +45 -5 to +45 -5 to +45 -5 to +45 -5 to +45 -5 to +45
MOUNTING Skid/Trolley/
Trailer/Truck
Skid/Trolley/
Trailer/Truck
Skid/Trolley/
Trailer/Truck
Skid/Trolley/
Trailer/Truck
Skid/Trolley/
Trailer/Truck
Skid/Trolley/
Trailer/Truck

Throw Scheme

Anti Smog Gun

Anti Smog Gun

Anti Smog Gun


Anti Smog Gun

The Air Pollution Concentration of particulate higher than 50 mg/Nm 3 of PM10 per day KILLS PEOPLE & ANIMALS
